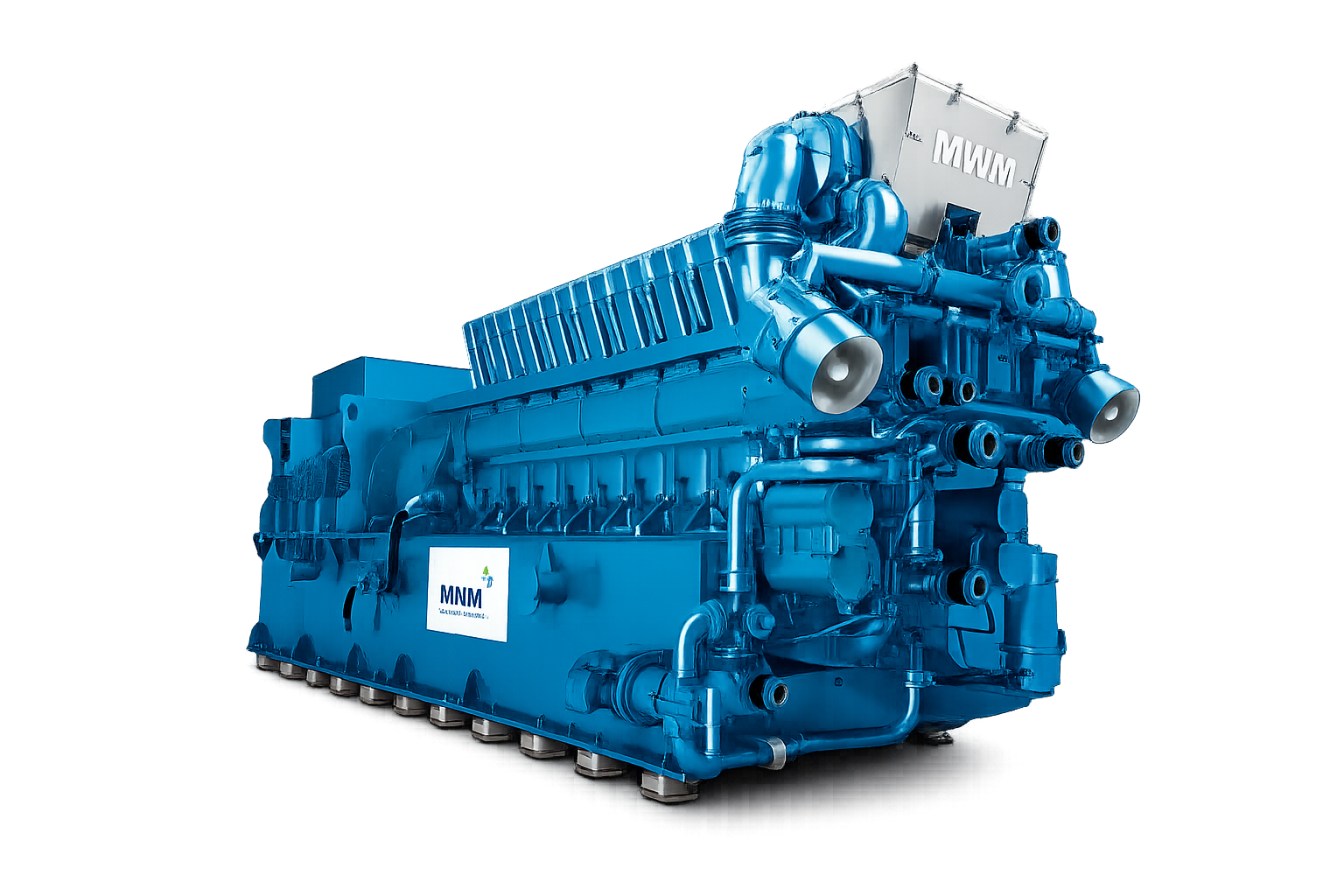

• 3.000 ila 4.500 kWel arasında çıkış aralığı
• Tüm gaz türlerinde çalışır
• %25 hacimsel hidrojen karışımı ile doğal gazla çalışmak üzere tasarlanmıştır
• TCG 2032B V16 gaz motoru için hızlı hızlanma seçeneği de mevcuttur
Natural Gas Applications, NOx ≤ 500 mg/Nm3 *
| TCG 2032 V12 R = Optimized for high total efficiency |
|||
|---|---|---|---|
| Engine type | 50 Hz | 60 Hz** | |
| Electrical output | kW | 3,333 | 3,000 |
| Mean effective pressure | bar | 20.0 | 20.1 |
| Thermal output ± 8% | kW | 3,238 | 2,877 |
| Electrical efficiency*** | % | 43.9 | 43.9 |
| Thermal efficiency*** | % | 42.6 | 42.1 |
| Total efficiency | % | 86.5 | 85.9 |
| Power to heat ratio**** | 1.03 | 1.04 | |
| TCG 2032 V16 R = Optimized for high total efficiency |
TCG 2032B V16 R = Optimized for high total efficiency |
||||
|---|---|---|---|---|---|
| Engine type | 50 Hz | 60 Hz** | 50 Hz | 60 Hz** | |
| Electrical output | kW | 4,300 | 4,000 | 4,500 | 4,050 |
| Mean effective pressure | bar | 19.4 | 20.2 | 20.3 | 20.4 |
| Thermal output ± 8% | kW | 4,164 | 3,866 | 4,361 | 3,891 |
| Electrical efficiency*** | % | 44.1 | 43.8 | 44.6 | 44.3 |
| Thermal efficiency*** | % | 42.7 | 42.4 | 43.2 | 42.6 |
| Total efficiency | % | 86.8 | 86.2 | 87.8 | 86.9 |
| Power to heat ratio**** | 1.03 | 1.03 | 1.03 | 1.04 | |
* 5% O2 and dry exhaust gases
** On request
*** According to ISO 8528-1
**** The power to heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.
The data in this chart are for information only and are not binding. The information given in the offer is authoritative. Further generator set variants are available with different generators.
Natural Gas Applications with 25 vol% Hydrogen (NOx ≤ 500 mg/Nm3* / 1.0 g/bhph*)
| TCG 2032 V12 R+ High Response plus 25H2-Kit = Optimized for high total efficiency with 25 vol.% hydrogen kit |
|||
|---|---|---|---|
| Engine type | 50 Hz | 60 Hz | |
| Electrical output** | kW | 3,333 | 3,000 |
| Electrical efficiency | % | 43.7 | 43.7 |
| Thermal efficiency***(±8 %) | % | 42.7 | 42.2 |
| Total efficiency | % | 86.4 | 85.9 |
| Power to heat ratio**** | 1.02 | 1.03 | |
| TCG 2032 V16 R+ High Response plus 25H2-Kit = Optimized for high total efficiency with 25 vol.% hydrogen kit |
TCG 2032B V16 R+ High Response plus 25H2-Kit = Optimized for high total efficiency with 25 vol.% hydrogen kit |
||||
|---|---|---|---|---|---|
| Engine type | 50 Hz | 60 Hz | 50 Hz | 60 Hz | |
| Electrical output** | kW | 4,300 | 4,000 | 4,500 | 4,050 |
| Electrical efficiency | % | 44.0 | 43.8 | 44.5 | 44.3 |
| Thermal efficiency***(±8 %) | % | 42.8 | 42.5 | 43.3 | 42.7 |
| Total efficiency | % | 86.8 | 86.3 | 87.8 | 87.0 |
| Power to heat ratio**** | 1.03 | 1.03 | 1.03 | 1.04 | |
* 5% O2 and dry exhaust gases
** According to ISO 3046-1
*** Exhaust gas cooled to 120 °C for natural gas
**** The power to heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please
remember that this is a theoretical value that may deviate from actually measured values.
The data in this chart are for information only and are not binding. The information given in the offer is authoritative. Further generator set variants are available with different generators.
Biogas, Landfill Gas, and Sewage Gas Applications, NOx ≤ 500 mg/Nm3 *
| TCG 2032 V16 X = Optimized for operation with biogases |
|||
|---|---|---|---|
| Engine type | 50 Hz | 60 Hz** | |
| Electrical output | kW | 3,770 | 3,510 |
| Mean effective pressure | bar | 17.0 | 17.0 |
| Thermal output ± 8% | kW | 3,487 | 3,117 |
| Electrical efficiency*** | % | 42.9 | 43.3 |
| Thermal efficiency*** | % | 39.7 | 38.5 |
| Total efficiency | % | 82.7 | 81.8 |
| Power to heat ratio**** | 1.08 | 1.12 | |
* 5% O2 and dry exhaust gases
** On request
*** According to ISO 8528-1
*** The power to heat ratio is calculated by dividing the electrical efficiency by the thermal efficiency. Please remember that this is a theoretical value that may deviate from actually measured values.
The data in this chart are for information only and are not binding. The information given in the offer is authoritative. Further generator set variants are available with different generators.
Dimensions and Weights
| TCG 2032 V12 | TCG 2032 V16 | ||||
|---|---|---|---|---|---|
| Engine type | 50 Hz | 60 Hz* | 50 Hz | 60 Hz* | |
| Length | mm | 7,860 | 8,000 | 9,271 | 9,420 |
| Width | mm | 2,660 | 2,790 | 2,790 | 2,790 |
| Height | mm | 3,390 | 3,390 | 3,390 | 3,390 |
| Dry weight genset | kg | 43,100 | 40,650 | 51,200 | 52,400 |
| Bore / stroke | mm | 260/320 | 260/320 | 260/320 | 260/320 |
* On request
The data in this chart are for information only and are not binding. The information given in the offer is authoritative. Further generator set variants are available with different generators.
Service Intervals
| First service (check valve clearance)* | Mixture cooler cleaning | Cylinder head inspection | Major overhaul | |
|---|---|---|---|---|
| Natural gas | 4,000 oh | 20,000 oh | 40,000 oh | 80,000 oh |
* “after commissioning (E10)”
The values given in this table are information purposes only and not binding. The information given in the offer is decisive. Other unit variants with other generators are available.
